CKX Apex Goggle Battery

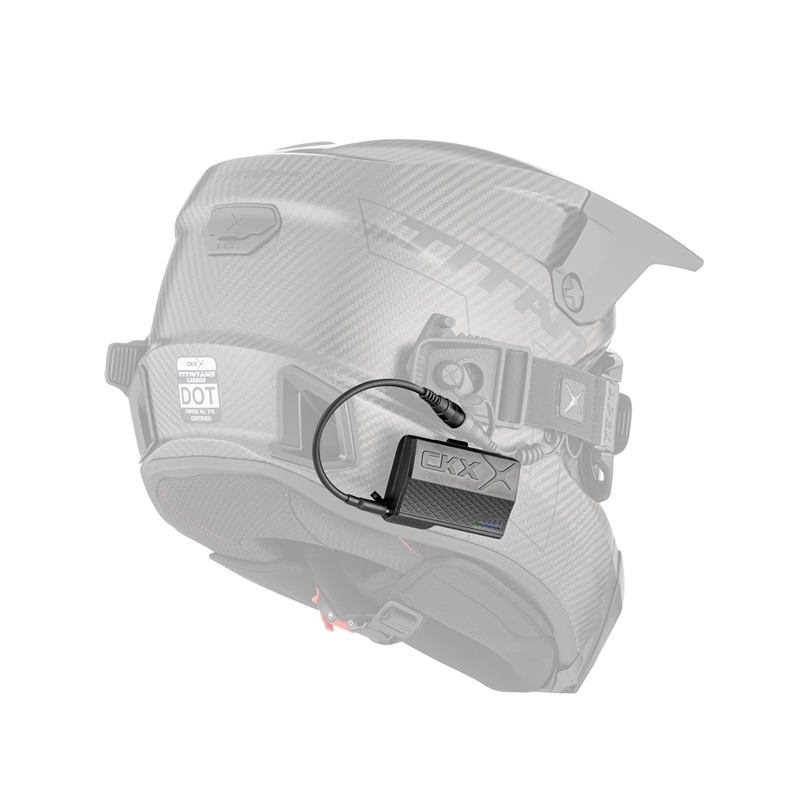

The APEX battery is specially designed to power the APEX goggles of the Titan AMS.

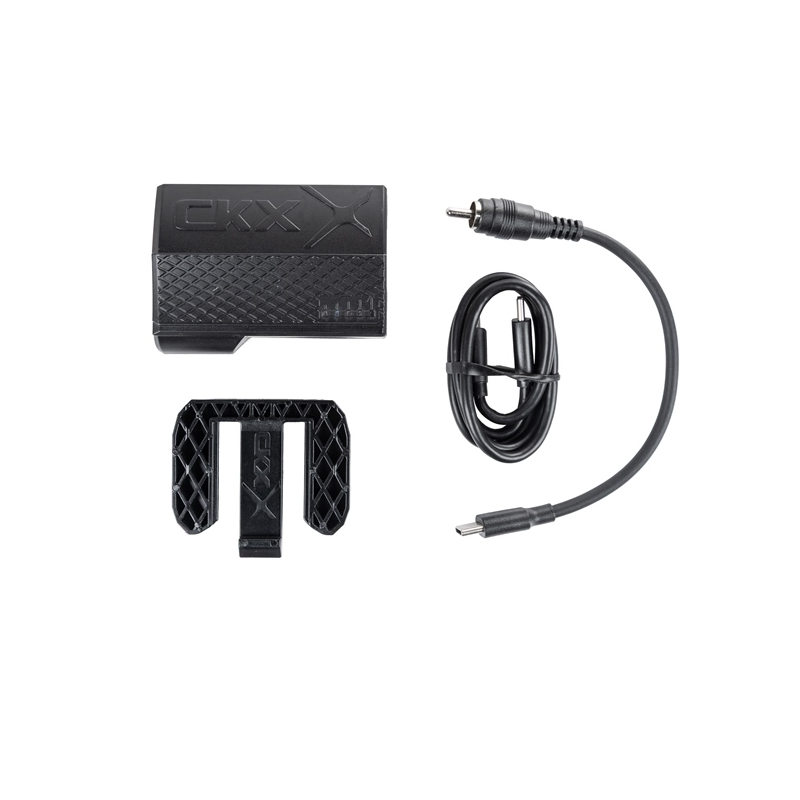

The battery kit (599121) includes:

• APEX Battery (599126)
• USB-C to RCA power cable (599127)
• USB-C to USB-C charging cable
• Battery clip (599213)

Specifications:

• Voltage: 7.2V
• Capacity: 3000mAh
• Energy: 21.6 Wh

When paired with the controller strap (599128), this battery enables 4 power modes for the goggles:

• Maximum power for 10 minutes
• Continuous maximum power — ~5 hours of battery life
• Continuous medium power — ~8 hours of battery life
• Continuous minimum power — ~11 hours of battery life

The APEX battery can also power other electrical accessories that operate from an RCA port.

Warnings:

• Most accessories are designed for a voltage of 12V, while the APEX battery provides 7.2V. Therefore, some heating accessories, such as an electric visor, may be slightly less warm than when powered by a 12V circuit.
• Current is intended to flow from USB-C to the RCA connector, not the other way around. Using this cable (599127) to attempt charging a USB-C device is not recommended.
